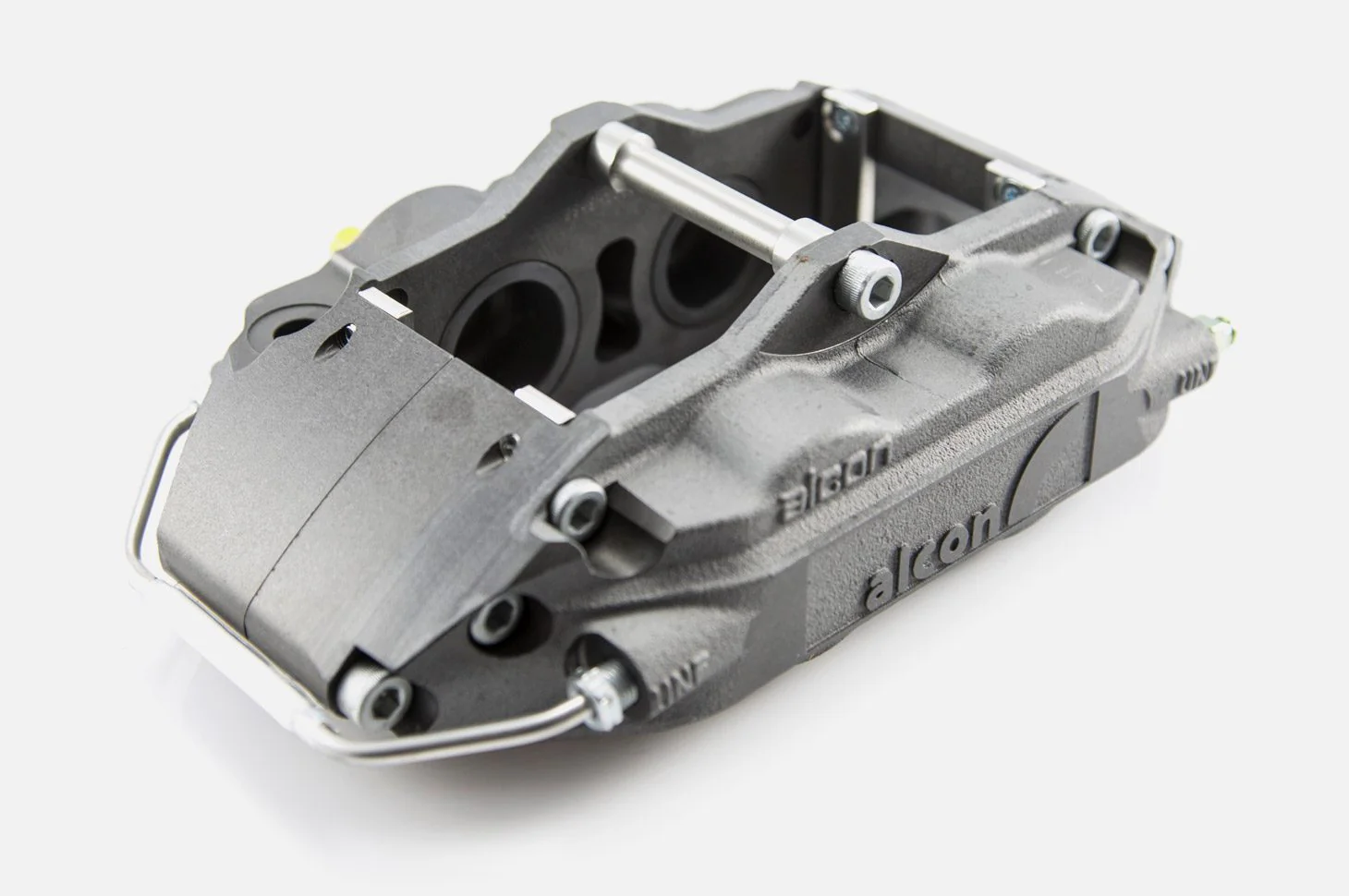

Alcon CRH304 Race caliper (Specify Left or Right)
SPECIFY SIDE: Alcon CRH304 Rally. Single Seater. Hill Climb. Saloon Car caliper. Radial mount for maximum rigidity and firm, consistent pedal Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid.
2kg anti-knock back springs
2kg anti-knock back springs
Specify which side you want.
Key features & benefits
- Radial mount for maximum rigidity and firm, consistent pedal
- Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
- 2kg anti-knock back springs
- Remove pad retainer bolt and sleeve to change pads
- Stainless steel fluid transfer pipe
Specifications
- Disc diameter range Ć250 ā 304mm
- Disc thickness range 25.4 ā 28mm
- Fluid inlet 3/8-24 UNF (-3) male
- Dry weight 1.9kg excluding pads
- Alcon pad reference 4463/39 area 80cm2 or 4463/42 area 92cm2, 16mm thick, 113.5mm long
SKU: CRH304/28-32/32 LL or RL-01
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Alcon CRH304 Race caliper (Specify Left or Right)
Alcon CRH304 Race caliper (Specify Left or Right)
SPECIFY SIDE: Alcon CRH304 Rally. Single Seater. Hill Climb. Saloon Car caliper. Radial mount for maximum rigidity and firm, consistent pedal Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid.
2kg anti-knock back springs
2kg anti-knock back springs
Specify which side you want.
Key features & benefits
- Radial mount for maximum rigidity and firm, consistent pedal
- Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
- 2kg anti-knock back springs
- Remove pad retainer bolt and sleeve to change pads
- Stainless steel fluid transfer pipe
Specifications
- Disc diameter range Ć250 ā 304mm
- Disc thickness range 25.4 ā 28mm
- Fluid inlet 3/8-24 UNF (-3) male
- Dry weight 1.9kg excluding pads
- Alcon pad reference 4463/39 area 80cm2 or 4463/42 area 92cm2, 16mm thick, 113.5mm long
SKU: CRH304/28-32/32 LL or RL-01
